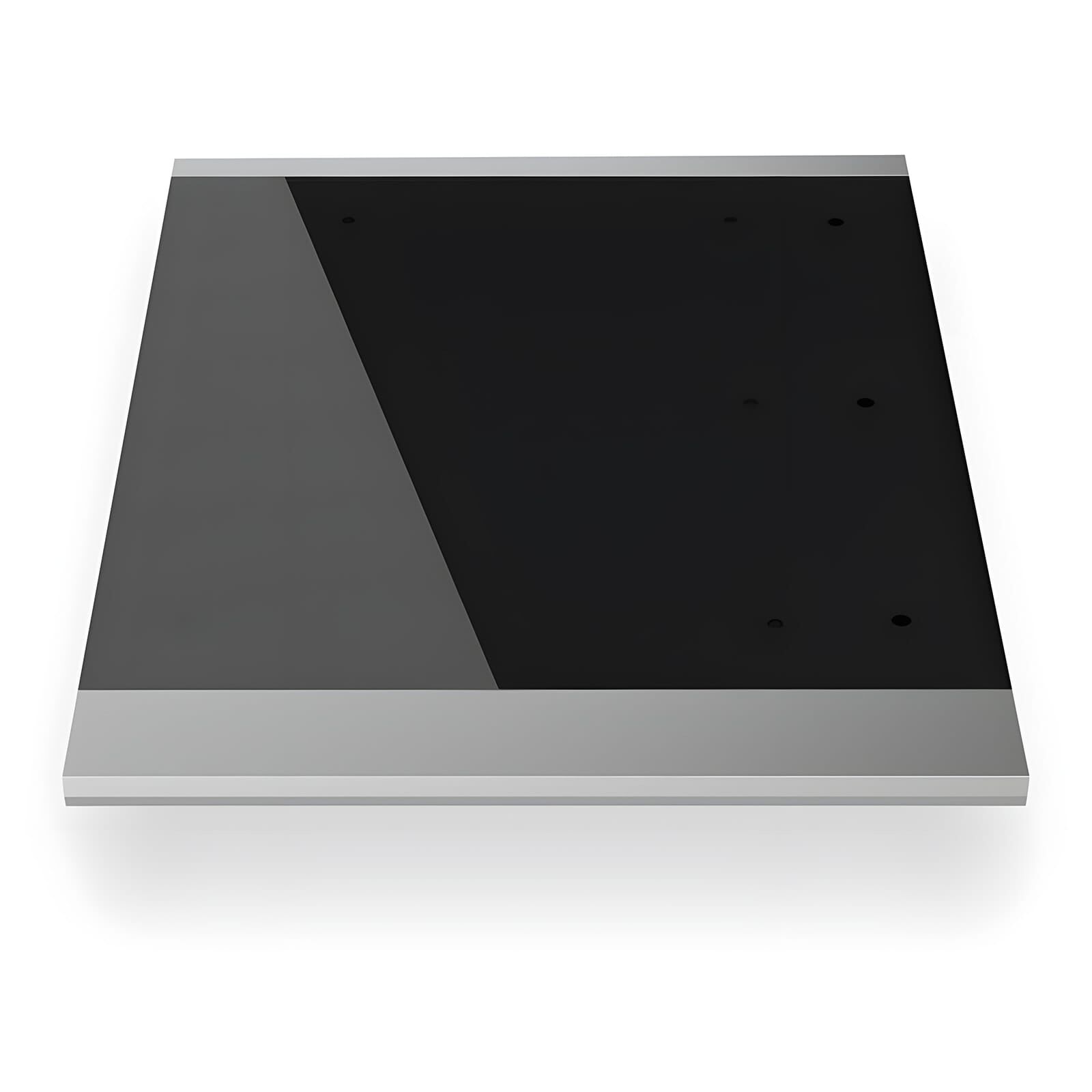

Giesemann MINOX tropic black

(0 ratings)

Small and flat LED for freshwater aquariums
Diamond Prism lighting technology
High-quality full-spectrum mid-power LED

In stock, only 12 left

Free shipping on orders over € 60,- within Germany Change region

Express delivery possible

1-3 business days - order today and we’ll deliver next week on Monday at the earliest

I want to order to

confirm

€

199.-

incl. VAT

free Shipping

Quantity:

Item is now in your shopping cart!

View my cart

Item question

We’re here for you!

Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.

Thank you for your question!

Thank you, we’ll get in touch!

Close window

You already sent us a question.

Please wait a few minutes

Description

The innovative Giesemann lighting system from MINOX combines design with performance thanks to Diamond Prism optics, which ensure high light output and perfect colour mixing. This technology enables almost loss-free illumination of the aquarium, which brings out the natural colours of plants and fish and promotes algae-free plant growth. This new lighting optic enables uniform, wide-ranging and almost completely loss-free illumination. In addition, any kind of glare when viewing the aquarium is effectively avoided.
The lighting scenario is preconfigured, but can be set and dimmed to individual requirements using the lynk Controller or LED Controller.

The durable premium aluminium housing in a silver anodised finish with black glass elements offers not only style but also functional benefits such as optimum temperature dissipation and protection of the electronics against splash water. Modern LED chips, efficient and energy-efficient, ensure constant brightness with more than 220 lumens per watt.

The MINOX offers various separately available mounting options, both as a pendant light and for attachment to the edge of the aquarium, and can therefore be used flexibly. The separately available aluminium holder with integrated cable guide enables simple installation and offers an adjustable height of the light. Suitable for rimless aquariums with a glass thickness of up to 25 mm, the MINOX is not only a lighting solution but also an aesthetic highlight for any aquarium.

Manual in German Language Minox - - download PDF

Features

Small and flat LED for freshwater aquariums
Diamond Prism lighting technology for homogeneous, glare-free light distribution
Equipped with white and coloured LEDs
High-quality full-spectrum mid-power LED
Controllable with separately available LED controller
3 separate channels individually controllable with separately available lynk controller
Aluminium housing in silver with black glass element

Technical data

Note: Only suitable for use in aquariums.

Giesemann MINOX tropic
Power consumption	45 W
Luminous flux	4.450 Lumen
LED Typ	Ceramic Midpower
Optics / light distribution	Prismatisch
Quantity LEDs	98
LED colours	5

Photometric evaluation MINOX tropic

Parameters	Channel 1-3	Channel 1	Channel 2	Channel 3
CCT	6.700 K	6.373 K	7.047 K	7.882 K
CIE 1931 x	0,3098	0,3150	0,2818	0,3155
CIE 1931 y	0,3250	0,3302	0,4299	0,2372
CRI (RA)	97	84	65	13
Re(R1~R15)	94	78	49	-17
GAI	100,9	90,2	51,9	153,2
Illuminance (lx)	16.400 lx	8.861 lx	4.904 lx	3.226 lx
PPFD (μmol/ ㎡ s)	253.74	127,77	59,28	73,29
λp	452 nm	451 nm	521 nm	636 nm
λD	487 nm	490 nm	519 nm	0 nm
Ft Candela	1523.7	823,2	455,3	299,7

Dimensions

Giesemann MINOX tropic
Length	225 mm
Width	166 mm
Height	205 mm

Product Safety Notes

Warning Notes:

Never use the packaging material for playing: Risk of suffocation!
Never look directly into the light source. Bright light can cause eye injuries!
Use the lights with great caution if children or people who cannot assess the risks are nearby.
The light housing and protective glass can become very hot during operation: Be careful when touching them!

General Notes:

Never operate the lights if damage is visible, a malfunction occurs, or after a fall, immersion in water, or other defects.
Never operate the lights without the appropriate protective glass. Replace damaged protective glass immediately to ensure splash protection.
Use the lights exclusively for lighting and additional lighting of aquariums in indoor areas.
Always protect the lights and electrical components from direct splashing water.

Handling Notes:

Install the lighting with a minimum distance of 30 cm from the water surface above the aquarium. Never operate the lighting underwater. Do not place it on the edge of the aquarium or install it in or behind covers or enclosures.
Perform maintenance only when the lights are completely disconnected from the electrical network and removed from the wall or ceiling.
Work inside the aquarium only when the lighting is completely disconnected from the mains (unplug the power cord).
Never attempt to open an LED light module or the power supply unit. Damaging the internal seals will void the warranty.
During cleaning, ensure that no moisture enters the inside of the lights through the ventilation openings.
Never cover the ventilation grids with objects and ensure that sufficient heat exchange can always take place.

Giesemann

Giesemann is a renowned manufacturer of premium aquariums and high-end aquarium lighting with over 30 years of experience. Based in Germany, the company specialises in the development and production of LED aquarium lighting, aquarium covers and custom-made aquariums.
The extensive product range extends from complete aquarium sets to handmade lighting, suitable for saltwater and freshwater aquariums as well as aquascapes. Giesemann attaches great importance to quality, sustainability and longevity, which is reflected in the use of high-quality German-made materials and the local production of all components.
