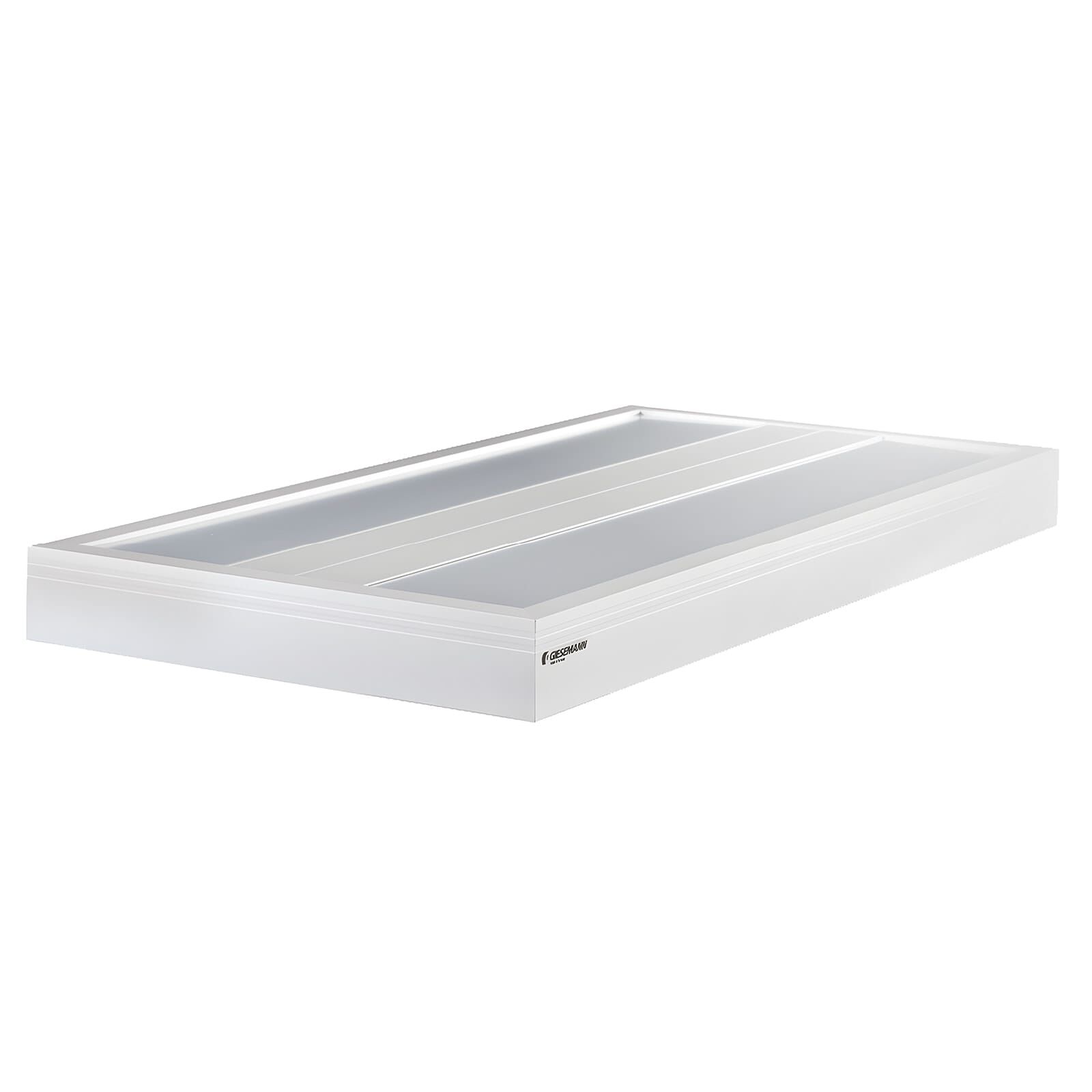

Giesemann SPHERA

(0 ratings)

For many regular aquariums
Including PULZAR LEDs
Opening at the back
Two hinged cover plates
Corrosion-resistant surface

In stock

Free shipping on orders over € 60,- within Germany Change region

Express delivery possible

1-3 business days - order today and we’ll deliver next week on Tuesday at the earliest

I want to order to

confirm

Please choose a variation

Item question

We’re here for you!

Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.

Thank you for your question!

Thank you, we’ll get in touch!

Close window

You already sent us a question.

Please wait a few minutes

Description

The Giesemann SPHERA aquarium cover, paired with the innovative PULZAR G3 light module, is a symbiosis of style and functionality. The shapely aluminium extrusion profile of the SPHERA, silver anodised, offers an easy-to-clean and corrosion-resistant surface. The sturdy, hinged cover plates made of aluminium composite are not only aesthetically pleasing, but also offer integrated drip protection. The generous opening at the back for supply lines and the efficient heat dissipation through the centre profile make the SPHERA cover the ideal cover for a successful aquascape.

The PULZAR G3 light module sets new standards in aquarium lighting. The luminaire body made of seawater-resistant aluminium with a brushed anthracite anodised surface guarantees durability and style. The passive cooling provided by the special luminaire design, combined with IP68 watertightness, makes the PULZAR G3 a reliable and safe light source. With biologically optimised colour spectra, a diffuser glass for homogeneous, glare-free light distribution and an efficiency of up to 220 lumens per watt, it provides outstanding lighting for the growth and health of your plants and aquarium inhabitants.

Features

Elegant, silver anodised aluminium extrusion profile
Seawater-resistant aluminium with anthracite anodised finish
Easy to clean, corrosion-resistant surface
Folding, stable cover plates made of aluminium composite material
Integrated drip water protection in the profile
Opening at the back for simple supply line
Additional cooling through centre profile as heat sink
Passive cooling and IP68 waterproofness
Biologically optimised colour spectra
Diffuser glass for glare-free light distribution
External power supply unit with overvoltage protection

Technical data

Note: Only suitable for use in aquaristics.

PR-Verteilung

PAR-value spread of the Pulzar lighting

Installed PULZAR	tropic - 40 Watt 495 mm	tropic - 50 Watt 695 mm	tropic - 70 Watt 895 mm	tropic - 80 Watt 1095 mm	tropic - 95 Watt 1195 mm	tropic - 110 Watt 1495 mm
Power consumption	36 Watt	46 Watt	70 Watt	78 Watt	90 Watt	110 Watt
Luminous flux	4.800 Lumen	6.100 Lumen	8.500 Lumen	9.720 Lumen	12.100 Lumen	14.600 Lumen
Colour temperature	6.700 Kelvin
PAR	570	580	550	550	560	560
Installed in cover	SPHERA - 60 x 60 cm	SPHERA - 80 x 40 cm SPHERA - 80 x 50 cm	SPHERA - 100 x 40 cm SPHERA - 100 x 50 cm SPHERA - 100 x 60 cm	SPHERA - 120 x 40 cm SPHERA - 120 x 50 cm SPHERA - 120 x 60 cm	SPHERA - 130 x 50 cm SPHERA - 130 x 60 cm SPHERA - 150 x 50 cm SPHERA - 150 x 60 cm	SPHERA - 160 x 50 cm SPHERA - 160 x 60 cm

Dimensions

Giesemann Sphera - 60 x 60 cm
Length	600 mm
Width	600 mm
Height	100 mm
Material thickness	3 mm
Covering the water level	ca. 40 mm
Height above aquarium edge	60 mm
max. width to outer edge	3 mm

Giesemann Sphera - 80 x 40 cm
Length	800 mm
Width	400 mm
Height	100 mm
Material thickness	3 mm
Covering the water level	ca. 40 mm
Height above aquarium edge	60 mm
max. Width bis Außenkante	3 mm

Giesemann Sphera - 80 x 50 cm
Length	800 mm
Width	500 mm
Height	100 mm
Material thickness	3 mm
Covering the water level	ca. 40 mm
Height above aquarium edge	60 mm
max. Width bis Außenkante	3 mm

Giesemann Sphera - 100 x 40 cm
Length	1.000 mm
Width	400 mm
Height	100 mm
Material thickness	3 mm
Covering the water level	ca. 40 mm
Height above aquarium edge	60 mm
max. Width bis Außenkante	3 mm

Giesemann Sphera - 100 x 50 cm
Length	1.000 mm
Width	500 mm
Height	100 mm
Material thickness	3 mm
Covering the water level	ca. 40 mm
Height above aquarium edge	60 mm
max. Width bis Außenkante	3 mm

Giesemann Sphera - 100 x 60 cm
Length	1.000 mm
Width	600 mm
Height	100 mm
Material thickness	3 mm
Covering the water level	ca. 40 mm
Height above aquarium edge	60 mm
max. Width bis Außenkante	3 mm

Giesemann Sphera - 120 x 40 cm
Length	1.200 mm
Width	400 mm
Height	100 mm
Material thickness	3 mm
Covering the water level	ca. 40 mm
Height above aquarium edge	60 mm
max. Width bis Außenkante	3 mm

Giesemann Sphera - 120 x 50 cm
Length	1.200 mm
Width	500 mm
Height	100 mm
Material thickness	3 mm
Covering the water level	ca. 40 mm
Height above aquarium edge	60 mm
max. Width bis Außenkante	3 mm

Giesemann Sphera - 120 x 60 cm
Length	1.200 mm
Width	600 mm
Height	100 mm
Material thickness	3 mm
Covering the water level	ca. 40 mm
Height above aquarium edge	60 mm
max. Width bis Außenkante	3 mm

Giesemann Sphera - 130 x 50 cm
Length	1.300 mm
Width	500 mm
Height	100 mm
Material thickness	3 mm
Covering the water level	ca. 40 mm
Height above aquarium edge	60 mm
max. Width bis Außenkante	3 mm

Giesemann Sphera - 130 x 60 cm
Length	1.300 mm
Width	600 mm
Height	100 mm
Material thickness	3 mm
Covering the water level	ca. 40 mm
Height above aquarium edge	60 mm
max. Width bis Außenkante	3 mm

Giesemann Sphera - 150 x 50 cm
Length	1.500 mm
Width	500 mm
Height	100 mm
Material thickness	3 mm
Covering the water level	ca. 40 mm
Height above aquarium edge	60 mm
max. Width bis Außenkante	3 mm

Giesemann Sphera - 150 x 60 cm
Length	1.500 mm
Width	600 mm
Height	100 mm
Material thickness	3 mm
Covering the water level	ca. 40 mm
Height above aquarium edge	60 mm
max. Width bis Außenkante	3 mm

Giesemann Sphera - 160 x 50 cm
Length	1.600 mm
Width	500 mm
Height	100 mm
Material thickness	3 mm
Covering the water level	ca. 40 mm
Height above aquarium edge	60 mm
max. Width bis Außenkante	3 mm

Giesemann Sphera - 160 x 60 cm
Length	1.600 mm
Width	600 mm
Height	100 mm
Material thickness	3 mm
Covering the water level	ca. 40 mm
Height above aquarium edge	60 mm
max. Width bis Außenkante	3 mm

Giesemann

Giesemann is a renowned manufacturer of premium aquariums and high-end aquarium lighting with over 30 years of experience. Based in Germany, the company specialises in the development and production of LED aquarium lighting, aquarium covers and custom-made aquariums.
The extensive product range extends from complete aquarium sets to handmade lighting, suitable for saltwater and freshwater aquariums as well as aquascapes. Giesemann attaches great importance to quality, sustainability and longevity, which is reflected in the use of high-quality German-made materials and the local production of all components.
