Description

The daytime backlight for EHEIM aquariums is a modern and high-quality LED backlight for retrofitting to EHEIM complete aquariums. A backlight gives the plants, the layout and the inhabitants in the aquarium a very three-dimensional appearance, as shadows are almost completely eliminated by the diffuse, large-area light. The enhanced optical three-dimensionality makes fine details more visible and colours of aquatic plants and aquarium inhabitants appear more vivid. Aquarium plants benefit particularly from the additional light source and respond to the supplementary light with splendid colours and growth. These daytime backlights are specially designed for EHEIM aquariums and are suitable for the Vivaline, Proxima and Incpiria series.

The installation on the aquarium is realised with the polycarbonate retaining clips included in the scope of delivery. The frame of the panel is provided with a circumferential aluminium rib, which makes installation very easy. The clips are inserted on the right and left between the glass and the gravel screen of the aquarium, the backlight panel is then placed on the clips and snapped into place. The spring tension of the clips keeps the daytime backlight in position.

Aquarium installation

Easy instalation

As an alternative to the blue and white gradient plate included in the scope of delivery, the daytime backlight Panel Opal White can be used.

Features

Professional LED backlight for EHEIM aquariums
Perfect fit due to precise manufacturing, made in Germany
Tool-free assembly due to supplied accessories
Sturdy, anodised aluminium frame
Creates a very attractive plasticity in the aquarium
Seperate available Dimmer enhances features
An optional Mounting bracket set is available for attachment to the base unit

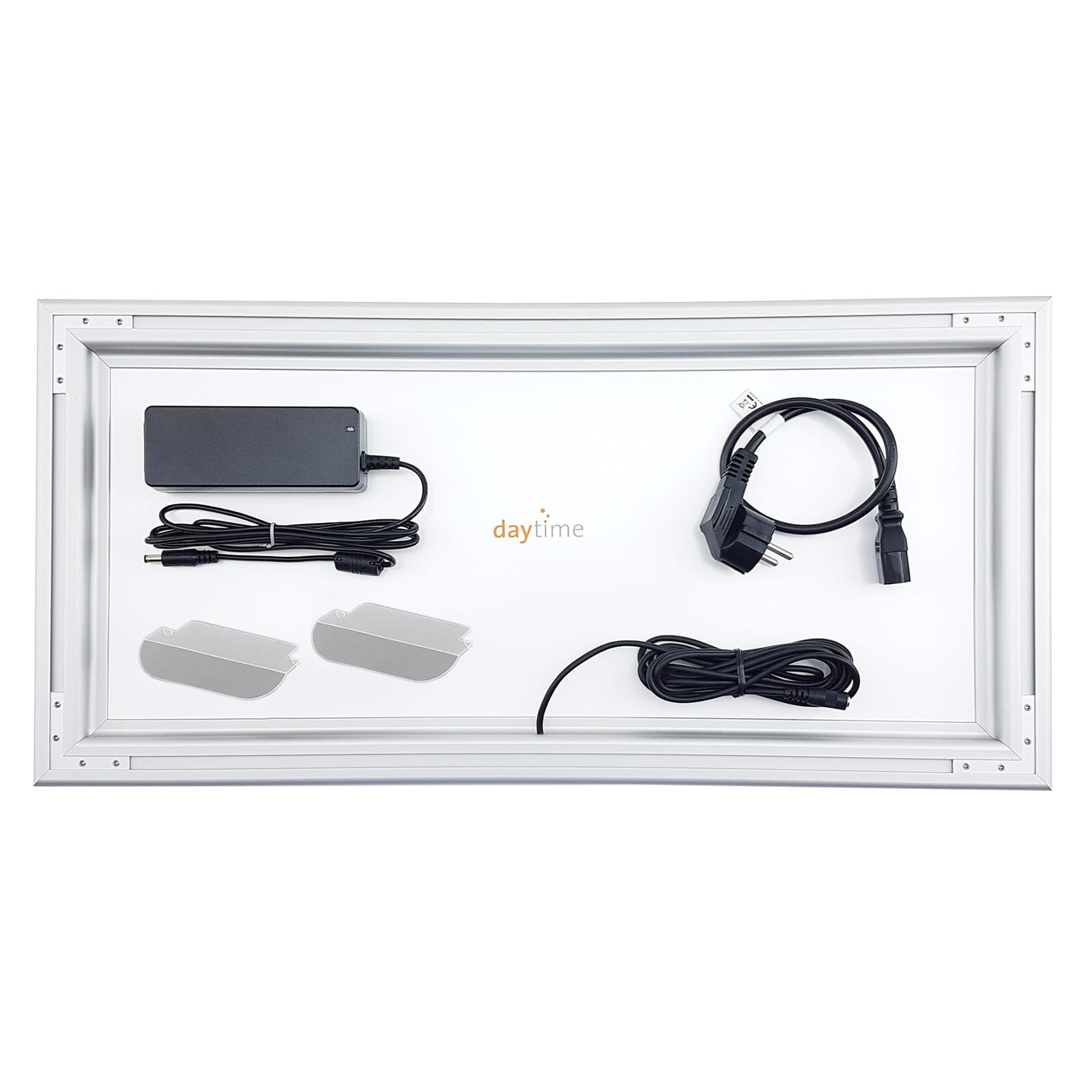

daytime backlights are supplied with a power supply unit and brackets to suit the aquarium in question.
Variants for Juwel aquariums as well as open aquaria aquariums are also available

Technical data

	Powerconsumption	Limunous flux in lumens	Colourtemperartur in Kelvin
daytime backlight for EHEIM - Vivaline 126	31 Watts	2.245	6.500
daytime backlight for EHEIM - Vivaline 150	23 Watts	2.646	6.500
daytime backlight for EHEIM -Vivaline 180	38 Watts	3.038	6.500
daytime backlight for EHEIM - Vivaline 240	46 Watts	3.724	6.500
daytime backlight for EHEIM - Proxima 175	27 Watts	4.508	6.500
daytime backlight forr EHEIM - Proxima 250	38 Watts	4.508	6.500
daytime backlight for EHEIM - Proxima 325	50 Watts	5.684	6.500
daytime backlight for EHEIM - Incpiria 230	27 Watts	3.430	6.500
daytime backlight for EHEIM - Incpiria 330	38 Watts	3.724	6.500
daytime backlight for EHEIM - Incpiria 430	50 Watts	4.900	6.500
daytime backlight for EHEIM - Incpiria 530	60 Watts	5.880	6.500
daytime backlight for EHEIM - Incpiria 630	77 Watts	7.546	6.500

Dimensions

	Width in mm	Height in mm	Depth in mm
daytime backlight for EHEIM - Vivaline 126	798	384	22
daytime backlight for EHEIM - Vivaline 150	598	435	22
daytime backlight for EHEIM -Vivaline 180	998	384	22
daytime backlight for EHEIM - Vivaline 240	1.198	434	22
daytime backlight for EHEIM - Proxima 175	698	428	22
daytime backlight forr EHEIM - Proxima 250	998	428	22
daytime backlight for EHEIM - Proxima 325	1.298	428	22
daytime backlight for EHEIM - Incpiria 230	698	555	22
daytime backlight for EHEIM - Incpiria 330	998	555	22
daytime backlight for EHEIM - Incpiria 430	1.298	555	22
daytime backlight for EHEIM - Incpiria 530	1598	555	22
daytime backlight for EHEIM - Incpiria 630	1.998	555	22

Daytime LED aquarium lighting - made in Germany - is one of the most efficient LED lighting manufacturers in the aquarium industry. The illumination systems daytime matrix, daytime onex, daytime pendix and daytime eco offer most flexible and individual solutions for brilliant aquarium illumination. The daytime lights are equipped with leading quality LEDs from SSC (SEOUL SEMI CONDUCTERS) with an efficiency of up to 230 lumens per watt and an outstanding colour rendering index (CRI) of up to 90. All daytime luminaries are water- and dust resistant with IP 67, DIN EN 60529 certificate. The lifespan lies at around 60.000 hours. All daytime lights are anodized and resistant against seawater with DIN81249-1 certificate. For the aquarium, aquascape or aquatic plant aquarium, the perfect solution to realise biotope-compatible and natural lighting with LEDs.
