Description

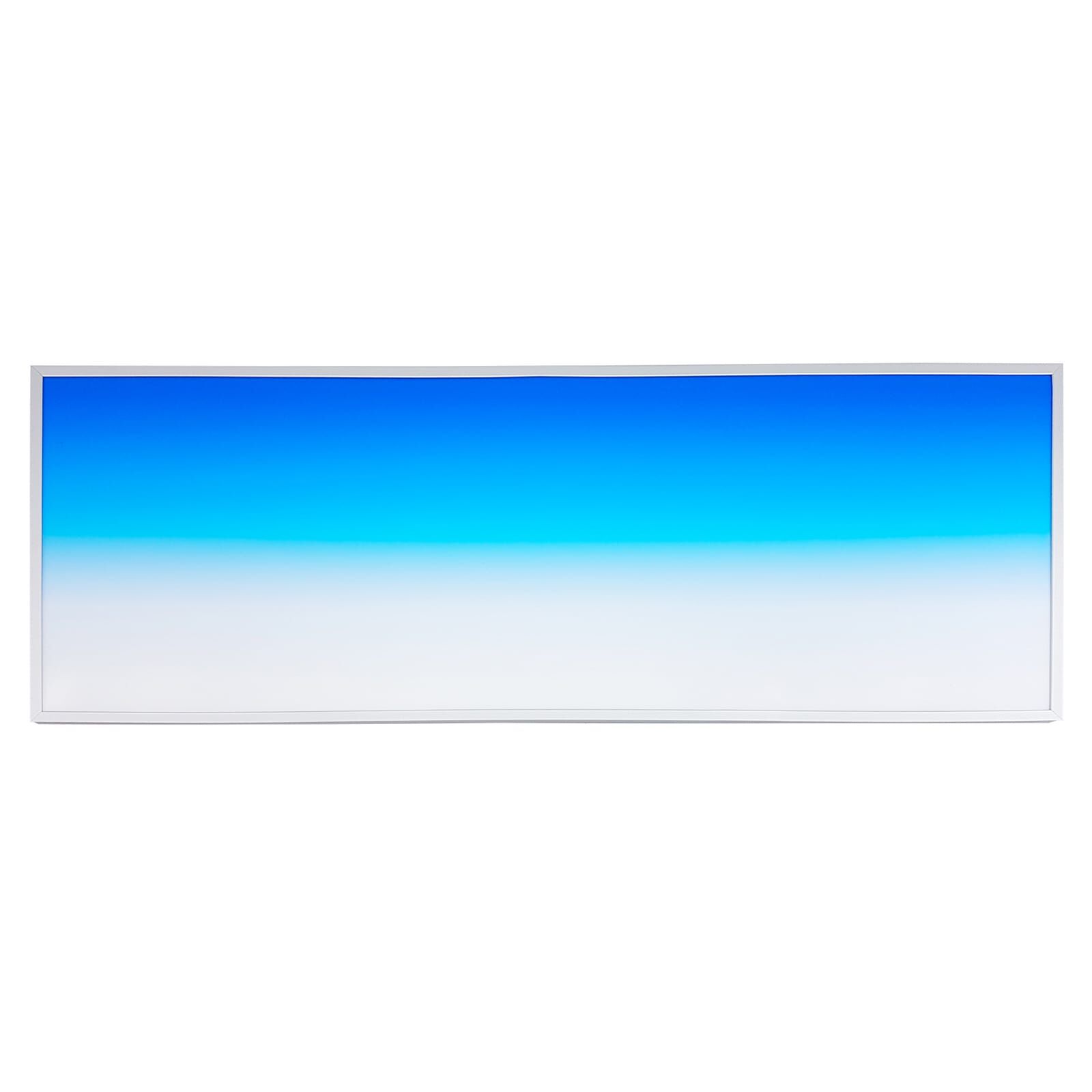

The daytime backlight for Juwel aquariums is a modern and high-quality LED backlight for retrofitting to Juwel complete aquariums. Backlighting gives the plants, the layout and the inhabitants in the aquarium a very three-dimensional appearance, as shadows are almost completely eliminated by the diffuse, large-area light. The enhanced optical three-dimensionality makes fine details more visible and colours of aquatic plants and aquarium inhabitants appear more vibrant. Aquarium plants benefit particularly from the additional light source and respond to the supplementary light with splendid colours and growth. These daytime backlights are specially designed for Juwel aquariums and are suitable for the Lido, Rio and Vision series.

The installation on the aquarium is realised with the polycarbonate retaining clips included in the scope of delivery. The frame of the panel has a circumferential aluminium rib, which makes installation very easy. The clips are inserted on the right and left between the glass and the gravel screen of the aquarium, the backlight Panel is then placed on the clips and snapped into place. The spring tension of the clips keeps the daytime backlight in position.

Aquarium installation

Easy instalation

As an alternative to the blue to white gradient plate included in the scope of delivery, the daytime backlight Panel Opal White can be used.

Features

Perfect fit due to precise manufacturing, made in Germany
Tool-free assembly due to supplied accessories
Sturdy, anodised aluminium frame
Creates a very attractive plasticity in the aquarium
Seperate available Dimmer enhances features
An optional Mounting bracket set is available for attachment to the base unit
daytime backlights are supplied with a power supply unit and brackets to suit the aquarium in question.
Variants for EHEIM aquariums as well as open aquaria are also available

Technical data

	Powerconsumption	Luminous flux in Lumen	Colourtemperatur in Kelvin
daytime backlight for Juwel - Lido 120	23 W	2.245	6.500
daytime backlight for Juwel - Lido 200	27 W	2.646	6.500
daytime backlight for Juwel - Rio 125	31 W	3.038	6.500
daytime backlight for Juwel - Rio 180	38 W	3.724	6.500
daytime backlight for Juwel - Rio 240	46 W	4.508	6.500
daytime backlight forr Juwel - Rio 350	46 W	4.508	6.500
daytime backlight for Juwel - Rio 450	58 W	5.684	6.500
daytime backlight for Juwel - Vision 180	35 W	3.430	6.500
daytime backlight for Juwel - Vision 260	46 W	4.508	6.500
daytime backlight for Juwel - Vision 450	58 W	5.684	6.500

Dimensions

	Width in mm	Height in mm	Depth in mm
daytime backlight for Juwel - Lido 120	598	458	22
daytime backlight for Juwel - Lido 200	698	523	22
daytime backlight for Juwel - Rio 125	798	386	22
daytime backlight for Juwel - Rio 180	998	381	22
daytime backlight for Juwel - Rio 240	1.198	425	22
daytime backlight forr Juwel - Rio 350	1.198	518	22
daytime backlight for Juwel - Rio 450	1498	543	22
daytime backlight for Juwel - Vision 180	913	421	22
daytime backlight for Juwel - Vision 260	1198	507	22
daytime backlight for Juwel - Vision 450	1.498	498	22

Daytime LED aquarium lighting - made in Germany - is one of the most efficient LED lighting manufacturers in the aquarium industry. The illumination systems daytime matrix, daytime onex, daytime pendix and daytime eco offer most flexible and individual solutions for brilliant aquarium illumination. The daytime lights are equipped with leading quality LEDs from SSC (SEOUL SEMI CONDUCTERS) with an efficiency of up to 230 lumens per watt and an outstanding colour rendering index (CRI) of up to 90. All daytime luminaries are water- and dust resistant with IP 67, DIN EN 60529 certificate. The lifespan lies at around 60.000 hours. All daytime lights are anodized and resistant against seawater with DIN81249-1 certificate. For the aquarium, aquascape or aquatic plant aquarium, the perfect solution to realise biotope-compatible and natural lighting with LEDs.
