daytime matrix

(2 ratings)

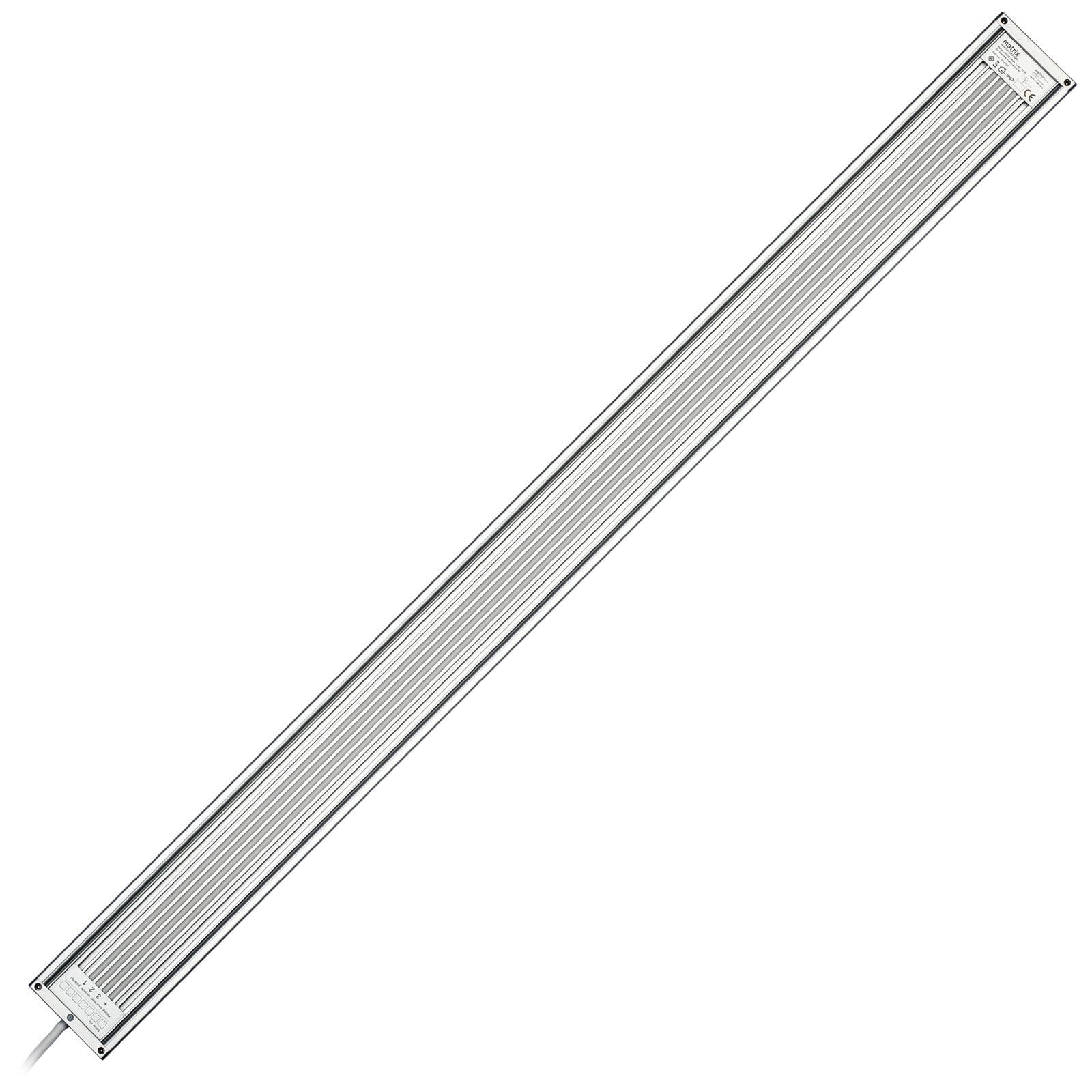

Aluminum profile with connection cable for converter
Supplied without LED modules!
Power supply (converter) has to be bought separately!
Dustproof and waterproof (IP67)

In stock, only 4 left

Free shipping on orders over € 60,- within Germany Change region

1-3 business days - order today and we’ll deliver Wednesday at the earliest

I want to order to

confirm

€

179.-

incl. VAT

free Shipping

Quantity:

Item is now in your shopping cart!

View my cart

Item question

We’re here for you!

Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.

Thank you for your question!

Thank you, we’ll get in touch!

Close window

You already sent us a question.

Please wait a few minutes

Description

The daytime matrix-series is setting new standards by combining variability, functionality and aesthetics. Just as unique as your own tank!
Provide the inhabitants of your tank with long term habitat-appropriate lighting by the help of this modern, innovative and high-quality LED lights. In addition to the high, spot-like light intensity (up to 1.800 lumen per cluster-module-surface of 52x52mm) the cluster creates natural light reflections, curl and shadow effects inside the tank. You will be delighted by the nearly limitless variability!

The sturdy aluminium profile is very resistant due to the anodization of its surface. Even in harsh salt water environment.

The sophisticated setup combines a timeless design with an ideal heat regulation. Due to a relatively large surface area heat dissipation is extraordinary and makes for a prolonged life of more than 50.000 hours without any significant loss of light output. Centrepiece of this lamp is the latest LED technology of market leader SEOUL SEMICONDUCTOR (SSC).

Regarding the range of white light, this LED has an efficiency of up to 230 lm/W and a CRI (colour light index) of up to 90. This saves up to 50% energy compared to conventional lamps while simultaneously increasing the brilliance.

Particularly noteworthy is the contacting of the LED modules which was specially developed for the matrix-series. It enables arbitrary placement of the modules. You can mount the modules on your own conveniently to the LED profile. So you can, for example, mount the modules densely over particular groups of light-hungry plants. Even a subsequent upgrade of a matrix is possible.

By means of the daytime BC16 daytime matrix can be controlled and dimmed. This makes daytime sequences, sunrises and sunsets and even break times possible.

All important information compactly summarized: Daytime - Infoflyer

daytime - matrix lights in larger sizes are available individually on request. For an offer, please send us an email to yoohoo@aquasabi.com.

If there are any questions about the configuration, we will be happy to help via email. We will be happy to advise or put together a completely customised daytime LED lighting system.

Manual matrix - - download PDF

Features

Supplied without LED-Modules - These must be ordered separately
Easy installation of the modules on your own - even retrospectively
Universal Adaptor is already integrated in the profile (extendable)
Several other adaptors are also available
There are special Adaptor-Profiles for covers by EHEIM and JUWEL
24V Converter is additionally required in any case
Up to 230 lumen per Watts
Sturdy, slim aluminium profile with best heat regulation
Anodized layer for highest hardiness
incl. splash guard - increases cleaning comfort to a maximum (can be removed for cleaning)
GORE-membrane acts as guarantor for constant conditions inside the lamp (pressure equalization and keeping out humidity
LED-technology of market leader (SEOUL SEMICONDUCTOR)
Very good colour rendering up to CRI 90
120° angle of radiation
Position-independent modular construction of the LED modules
LED life span of aprox. 60.000 hours
Dust and waterproof (IP67)

Usage

Profile	Max. possible Modules
matrix 20.0	1 Module
matrix 30.0	1 Modules
matrix 40.0	2 Modules
matrix 50.0	3 Modules
matrix 60.0	4 Modules
matrix 70.0	5 Modules
matrix 80.0	6 Modules
matrix 90.0	7 Modules
matrix 100.0	8 Modules
matrix 110.0	9 Modules
matrix 120.0	10 Modules
matrix 130.0	11 Modules
matrix 140.0	12 Modules
matrix 150.0	13 Modules
matrix 160.0	14 Modules
matrix 170.0	14 Modules
matrix 180.0	15 Modules
matrix 190.0	16 Modules
matrix 200.0	17 Modules

Dimension

daytime matrix 20.0
Profile length without adapters	166 mm
Suitable for aquariums
with universal adapter (included)	200 - 300 mm
with Swing-Adaptor	200 - 300 mm
with Insertion / Bolt On-Adaptor	230 - 300 mm

daytime matrix 30.0
Profile length without adapters	250 mm
Suitable for aquariums
with universal adapter (included)	280 - 384 mm
with Swing-Adaptor	250 - 384 mm
with Insertion / Bolt On-Adaptor	280 - 384 mm

daytime matrix 40.0
Profile length without adapters	350 mm
Suitable for aquariums
with universal adapter (included)	380 - 484 mm
with Swing-Adaptor	350 - 484 mm
with Insertion / Bolt On-Adaptor	380 - 484 mm

daytime matrix 50.0
Profile length without adapters	450 mm
Suitable for aquariums
with universal adapter (included)	480 - 584 mm
with Swing-Adaptor	450 - 584 mm
with Insertion / Bolt On-Adaptor	480 - 584 mm
with T5-Adaptor	438 mm / 24 Watts
with T8-Adaptor	438 mm / 15 Watts

daytime matrix 60.0
Profile length without adapters	550 mm
Suitable for aquariums
with universal adapter (included)	580 - 684 mm
with Swing-Adaptor	550 - 684 mm
with Insertion / Bolt On-Adaptor	580 - 684 mm
with T5-Adaptor	517 mm / 13 Watts

daytime matrix 70.0
Profile length without adapters	650 mm
Suitable for aquariums
with universal adapter (included)	680 - 784 mm
with Swing-Adaptor	650 - 784 mm
with Insertion / Bolt On-Adaptor	680 - 784 mm
with T5-Adaptor	549 mm / 24 & 28 Watts
with T8-Adaptor	590 mm / 18 Watts

daytime matrix 80.0
Profile length without adapters	750 mm
Suitable for aquariums
with universal adapter (included)	780 - 884 mm
with Swing-Adaptor	750 - 884 mm
with Insertion / Bolt On-Adaptor	750 - 884 mm
with T5-Adaptor	742 mm / 35 Watts
with T8-Adaptor	742 mm / 25 Watts

daytime matrix 90.0
Profile length without adapters	850 mm
Suitable for aquariums
with universal adapter (included)	880 - 984 mm
with Swing-Adaptor	850 - 984 mm
with Insertion / Bolt On-Adaptor	880 - 984 mm
with T5-Adaptor	849 mm / 39 & 45 Watts
with T8-Adaptor	895 mm / 30 Watts

daytime matrix 100.0
Profile length without adapters	950 mm
Suitable for aquariums
with universal adapter (included)	980 - 1.084 mm
with Swing-Adaptor	950 - 1.084 mm
with Insertion / Bolt On-Adaptor	980 - 1.084 mm

daytime matrix 110.0
Profile length without adapters	1.050 mm
Suitable for aquariums
with universal adapter (included)	1.080 - 1.184 mm
with Swing-Adaptor	1.050 - 1.184 mm
with Insertion / Bolt On-Adaptor	1.080 - 1.184 mm
with T5-Adaptor	1.047 mm / 54 Watts
with T8-Adaptor	1.047 mm / 38 Watts

daytime matrix 120.0
Profile length without adapters	1.150 mm
Suitable for aquariums
with universal adapter (included)	1.180 - 1.284 mm
with Swing-Adaptor	1.150 - 1.284 mm
with Insertion / Bolt On-Adaptor	1.180 - 1.284 mm
with T5-Adaptor	1.149 mm / 54 Watts

daytime matrix 130.0
Profile length without adapters	1.250 mm
Suitable for aquariums
with universal adapter (included)	1.280 - 1.384 mm
with Swing-Adaptor	1.250 - 1.384 cm
with Insertion / Bolt On-Adaptor	1.280 - 1.384 mm
with T5-Adaptor	1.200 mm / 54 Watts
with T8-Adaptor	1.200 mm / 36 Watts

daytime matrix 140.0
Profile length without adapters	1.350 mm
Suitable for aquariums
with universal adapter (included)	1.380 - 1.484 mm
with Swing-Adaptor	1.350 - 1.484 mm
with Insertion / Bolt On-Adaptor	1.380 - 1.484 mm

daytime matrix 150.0
Profile length without adapters	1.450 mm
Suitable for aquariums
with universal adapter (included)	1.480 - 1.584 mm
with Swing-Adaptor	1.450 - 1.584 mm
with Insertion / Bolt On-Adaptor	1.480 - 1.584 mm
with T5-Adaptor	1.449 mm / 80 Watts
with T8-Adaptor	1.500 mm / 58 Watts

daytime matrix 160.0
Profile length without adapters	1.550 mm
Suitable for aquariums
with universal adapter (included)	1.580 - 1.684 mm
with Swing-Adaptor	1.550 - 1.684 mm
with Insertion / Bolt On-Adaptor	1.580 - 1.684 mm
with Acrylic Adaptor	1.560 mm - 1.720 mm

daytime matrix 170.0
Profile length without adapters	1.650 mm
Suitable for aquariums
with universal adapter (included)	1.680 - 1.784 mm
with Swing-Adaptor	1.650 - 1.784 mm
with Insertion / Bolt On-Adaptor	1.680 - 1.784 mm
with Acrylic Adaptor	1.660 mm - 1.820 mm

daytime matrix 180.0
Profile length without adapters	1.750 mm
Suitable for aquariums
with universal adapter (included)	1.780 - 1.884 mm
with Swing-Adaptor	1.750 - 1.884 mm
with Insertion / Bolt On-Adaptor	1.780 - 1.884 mm
with Acrylic Adaptor	1.760 mm - 1.920 mm

daytime matrix 190.0
Profile length without adapters	1.850 mm
Suitable for aquariums
with universal adapter (included)	1.880 - 1.984 mm
with Swing-Adaptor	1.850 - 1.984 mm
with Insertion / Bolt On-Adaptor	1.880 - 1.984 mm
with Acrylic Adaptor	1.860 mm - 2.020 mm

daytime matrix 200.0
Profile length without adapters	1.950 mm
Suitable for aquariums
with universal adapter (included)	1.980 - 2.084 mm
with Swing-Adaptor	1.950 - 2.084 mm
with Insertion / Bolt On-Adaptor	1.980 - 2.084 mm
with Acrylic Adaptor	1.960 mm - 2.120 mm

Other adaptors, such as a cable suspension for up to three LED profiles are also available.

There are special adaptor profiles for covers by Eheim, which allow a very simple conversion.
