daytime Mounting Kit matrix
- 7 different adaptors available
- easy to use
- Sea water resistance 81249-1 DIN
- UV- and corrosion resistant
- Made of high-quality materials
Item question
We’re here for you!
Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.
Thank you for your question!
Thank you, we’ll get in touch!
Close window
You already sent us a question.
Please wait a few minutes
Description
Matching the individuality, which the daytime LED lights provide, there are a number of different ways to install the lamp/s over your own tank. The adaptor or holder kits are exclusively made of high-quality materials such as an aluminum alloy with sea water resistance according to DIN 81249-1 and corrosion resistant stainless steel elements.
Practically a suitable adaptor or holder kit for every application can be found - both, pool-type tanks and tanks with a cover. Even upgrading an existing lightbar to LED lighting can be realized with little effort within a very short time.
Swing-Adaptor
- Suitable for pool-type aquariums
- Allows the use of the longest possible lighting profiles (profile width = tank width)
- The lamp is positioned about 60 mm above the edge, on which the lamp is placed
- Mounting bracket can be adjusted in width and adapt to the tank width
- Allows easy moving of the LED lamp
- Width: 14 cm
| Profil | Profile length | Tank width |
|---|---|---|
| matrix20.0 | 16,6 cm | 20,0-30,0 cm |
| matrix30.0 | 25,0 cm | 25,0-38,4 cm |
| matrix40.0 | 35,0 cm | 35,0-48,4 cm |
| matrix50.0 | 45,0 cm | 45,0-58,4 cm |
| matrix60.0 | 55,0 cm | 55,0-68,4 cm |
| matrix70.0 | 65,0 cm | 65,0-78,4 cm |
| matrix80.0 | 75,0 cm | 75,0-88,4 cm |
| matrix90.0 | 85,0 cm | 85,0-98,4 cm |
| matrix100.0 | 95,0 cm | 95,0-108,4 cm |
| matrix110.0 | 105,0 cm | 105,0-118,4 cm |
| matrix120.0 | 115,0 cm | 115,0-128,4 cm |
| matrix130.0 | 125,0 cm | 125,0-138,4 cm |
| matrix140.0 | 135,0 cm | 135,0-148,4 cm |
| matrix150.0 | 145,0 cm | 145,0-158,4 cm |
| matrix160.0 | 155,0 cm | 155,0-168,4 cm |
| matrix170.0 | 165,0 cm | 165,0-178,4 cm |
| matrix180.0 | 175,0 cm | 174,5-188,4 cm |
| matrix190.0 | 185,0 cm | 185,0-198,4 cm |
| matrix200.0 | 195,0 cm | 195,0-208,4 cm |
Cross Connector 200
- Suitable for pool-type aquariums
- High-quality aluminum bars to connect 2-3 lamps
- Incl. cable suspension made from stainless steel
- Allows free suspension of the LED Lamps on the aquarium
- The height can be adjusted easily without any tool
- The length of the wire cables is 2 metres
Insertion / Bolt On-Adaptor
- Suitable for tanks with cover
- Compact adaptor kit with universal applicability
- For hanging or standing use
- Provided with holes, which also permit screwing on suitable surfaces
- The fasteners can be adjusted to match the tank width
| Profil | Profile length | Tank width |
|---|---|---|
| matrix20.0 | 16,6 cm | 23,0-30,0 cm |
| matrix30.0 | 25,0 cm | 28,0-38,4 cm |
| matrix40.0 | 35,0 cm | 38-48,4 cm |
| matrix50.0 | 45,0 cm | 48-58,4 cm |
| matrix60.0 | 55,0 cm | 58,0-68,4 cm |
| matrix70.0 | 65,0 cm | 68,0-78,4 cm |
| matrix80.0 | 75,0 cm | 75,0-88,4 cm |
| matrix90.0 | 85,0 cm | 88,0-98,4 cm |
| matrix100.0 | 95,0 cm | 98,0-108,4 cm |
| matrix110.0 | 105,0 cm | 108,0-118,4 cm |
| matrix120.0 | 115,0 cm | 118,0-128,4 cm |
| matrix130.0 | 125,0 cm | 128,0-138,4 cm |
| matrix140.0 | 135,0 cm | 138,0-148,4 cm |
| matrix150.0 | 145,0 cm | 148,0-158,4 cm |
| matrix160.0 | 155,0 cm | 158,0-168,4 cm |
| matrix170.0 | 165,0 cm | 168,0-178,4 cm |
| matrix180.0 | 1750,0 cm | 178,0-188,4 cm |
| matrix190.0 | 185,0 cm | 188,0-198,4 cm |
| matrix200.0 | 195,0 cm | 198,0-198,4 cm |
T5-Adaptor
- To convert an existing lightbar with T5 lamps (16 mm diameter)
- The fasteners can be adjusted to match the socket distance
- The electrical supply of the lamps is not made through the sockets
- The distance between the tube's bracket-middle and the lamp's lower edge is 45 mm
| Profil | Length | Power |
|---|---|---|
| matrix50.0 | 438 mm | 24 Watt |
| matrix60.0 | 517 mm | 13 Watt |
| matrix70.0 | 549 mm | 24 & 28 Watt |
| matrix80.0 | 742 mm | 35 Watt |
| matrix90.0 | 849 mm | 39 & 45 Watt |
| matrix110.0 | 1047 mm | 54 Watt |
| matrix120.0 | 1149 mm | 54 Watt |
| matrix130.0 | 1200 mm | 54 Watt |
| matrix150.0 | 1449 mm | 80 Watt |
The length corresponds to the fluorescent tube without the contact pins.
T8-Adaptor
- To convert an existing lightbar with T8 lamps (26 mm diameter)
- The fasteners can be adjusted to match the socket distance
- The electrical supply of the lamps is not made through the sockets
- The distance between the tube's bracket-middle and the lamp's lower edge is 45 mm
| Profil | Length | Power |
|---|---|---|
| matrix50.0 | 438 mm | 15 Watt |
| matrix60.0 | 590 mm | 18 Watt |
| matrix70.0 | 590 mm | 18 Watt |
| matrix90.0 | 895 mm | 30 Watt |
| matrix80.0 | 742 mm | 25 Watt |
| matrix90.0 | 895 mm | 30 Watt |
| matrix110.0 | 1047 mm | 38 Watt |
| matrix130.0 | 1200 mm | 36 Watt |
| matrix150.0 | 1500 mm | 58 Watt |
The length corresponds to the fluorescent tube without the contact pins.

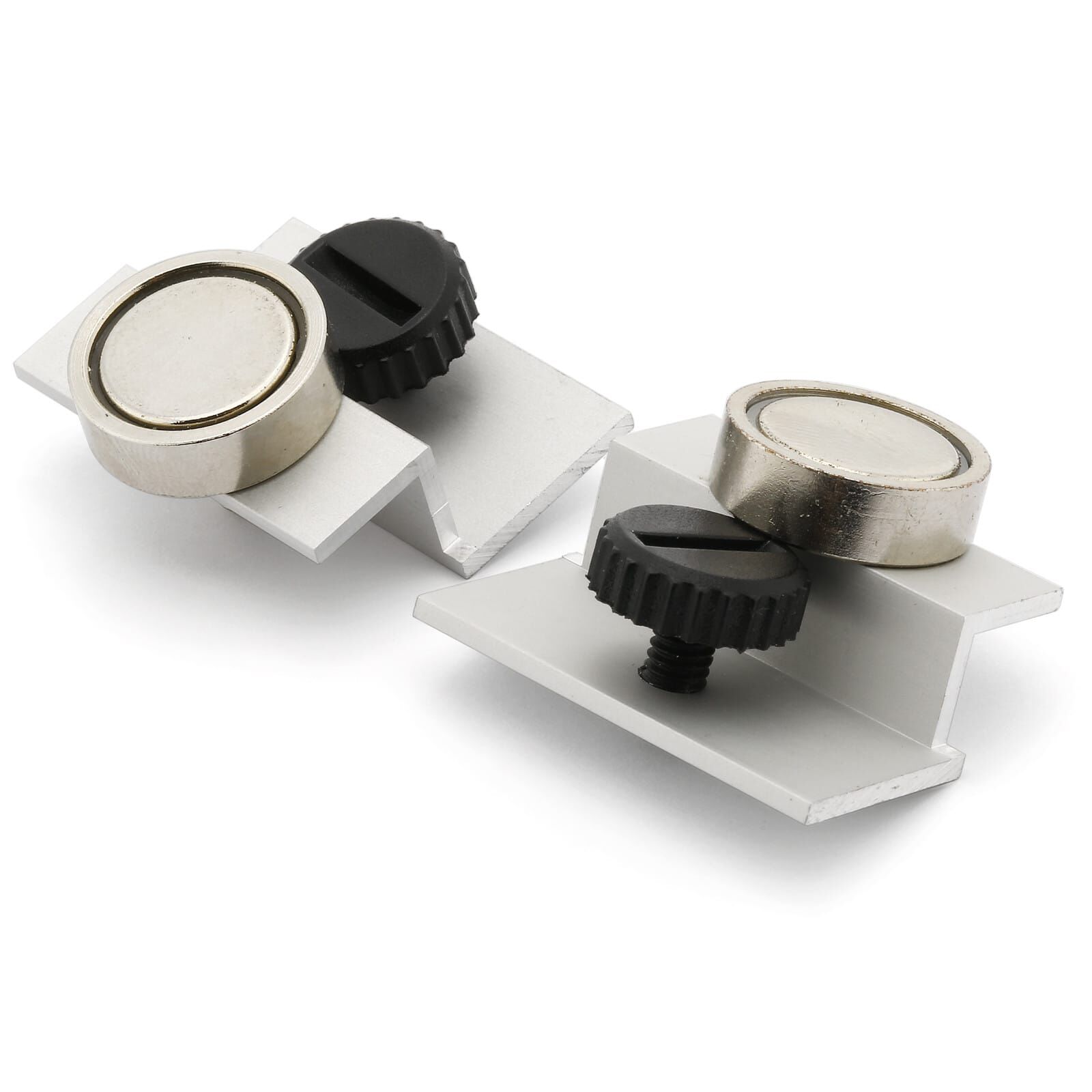

Magnetic Holder
- Allows mounting of the LED lamps on magnetic surfaces
- These magnetic elements replace the plastic thumbscrews of the head pieces
- Neodymium magnets with exceptional holding power
- Possibly painted metal surfaces and / or special alloys reduce the max. Holding force of the magnets
Akryl-Adaptor
- Suitable for pool-type aquariums
- Allows the use of the longest possible lighting profiles (profile width = tank width)
- The lamp is positioned about 60 mm above the edge, on which the lamp is placed
- CNC-milled steps ensure a secure footing
- Allows easy moving of the LED lamp
- Width: 14 cm
| Profil | Profile length | Tank width |
|---|---|---|
| matrix20.0 | 16,6 cm | 17,6-33,6 cm |
| matrix30.0 | 25,0 cm | 26,0-42,0 cm |
| matrix40.0 | 35,0 cm | 36,0-52,0 cm |
| matrix50.0 | 45,0 cm | 46,0-62,0 cm |
| matrix60.0 | 55,0 cm | 56,0-72,0 cm |
| matrix70.0 | 65,0 cm | 66,0-82,0 cm |
| matrix80.0 | 75,0 cm | 76,0-92,0 cm |
| matrix90.0 | 85,0 cm | 86,0-102,0 cm |
| matrix100.0 | 95,0 cm | 96,0-112,0 cm |
| matrix110.0 | 105,0 cm | 106,0-122,0 cm |
| matrix120.0 | 115,0 cm | 116,0-132,0 cm |
| matrix130.0 | 125,0 cm | 126,0-142,0 cm |
| matrix140.0 | 135,0 cm | 136,0-52,0 cm |
| matrix150.0 | 145,0 cm | 146,0-162,0 cm |
| matrix160.0 | 155,0 cm | 156,0-172,0 cm |
| matrix170.0 | 165,0 cm | 166,0-182,0 cm |
| matrix180.0 | 175,0 cm | 176,0-192,0 cm |
| matrix190.0 | 185,0 cm | 186,0-202,0 cm |
| matrix200.0 | 195,0 cm | 196,0-212,0 cm |
daytime
Daytime LED aquarium lighting - made in Germany - is one of the most efficient LED lighting manufacturers in the aquarium industry. The illumination systems daytime matrix, daytime onex, daytime pendix and daytime eco offer most flexible and individual solutions for brilliant aquarium illumination. The daytime lights are equipped with leading quality LEDs from SSC (SEOUL SEMI CONDUCTERS) with an efficiency of up to 230 lumens per watt and an outstanding colour rendering index (CRI) of up to 90. All daytime luminaries are water- and dust resistant with IP 67, DIN EN 60529 certificate. The lifespan lies at around 60.000 hours. All daytime lights are anodized and resistant against seawater with DIN81249-1 certificate. For the aquarium, aquascape or aquatic plant aquarium, the perfect solution to realise biotope-compatible and natural lighting with LEDs.
Manufacturer Information
| Manufacturer | |
|---|---|
| Name | Tropical Heimtierbedarf Deutschland GmbH |
| Street | Bühlfelderweg 12 |
| City | 94239 Ruhmannsfelden |
| State | Bayern |
| Country | Deutschland |
| info@daytime.de | |
| Website | www.daytime.de |
General information
| Item no. |
|
| EAN | 4260432788204 |
| Weight | 0,06 kg |
| Shipping weight | 0,20 kg |
