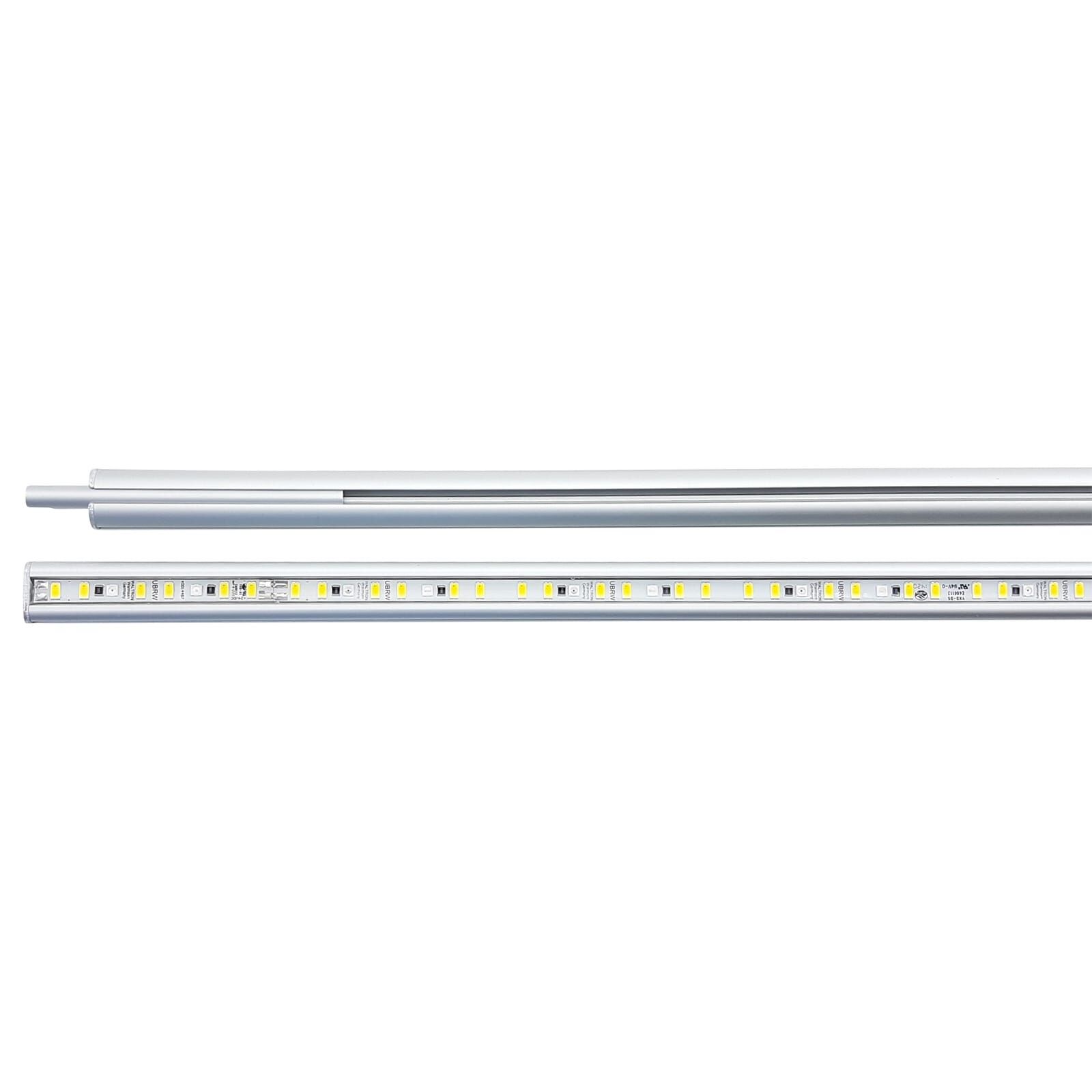

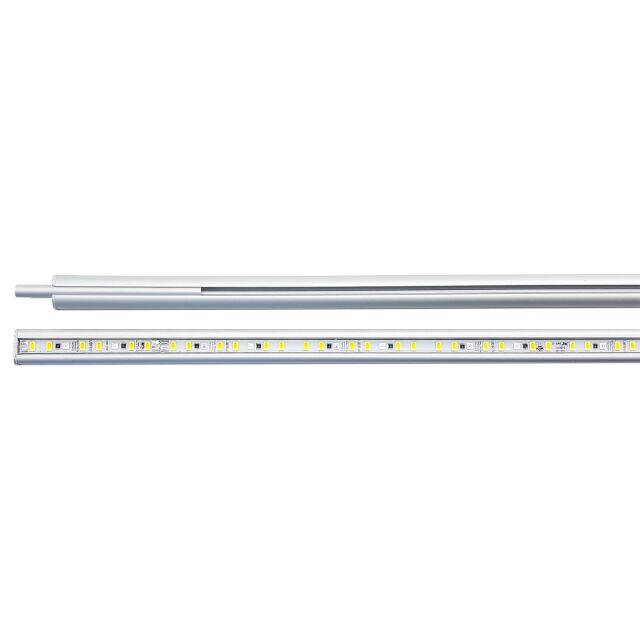

daytime onex plant

(0 ratings)

High quality of light with a natural look
High luminous flux density
Fullspektrum LEDs
Delicate design
Extensive accessories available

In stock, only 3 left

Free shipping on orders over € 60,- within Germany Change region

1-3 business days - order within the next 10 hours and 48 minutes and we’ll deliver tomorrow at the earliest

I want to order to

confirm

Data Sheet

€

139.-

incl. VAT

free Shipping

Quantity:

Item is now in your shopping cart!

View my cart

Item question

We’re here for you!

Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.

Thank you for your question!

Thank you, we’ll get in touch!

Close window

You already sent us a question.

Please wait a few minutes

Description

The daytime onex plant LED system offers modern LED aquarium lights especially for closed aquariums. The balanced full spectrum white light LEDs produce an organic and natural light that naturally represents the interaction of hardscape, plants and animals in the aquarium. daytime onex plant luminaires combine highest light quality and luminous flux density in a compact and filigree design. The colour temperature of 4.000 to 5.000 Kelvin creates a light that resembles daylight, emphasising soft, yellowish and brown tones that create a calm and balanced atmosphere.

spectrum

Spectrum daytime onex plant

Thanks to the extremely high-quality full spectrum white light LEDs and sophisticated design, an output of 864 to 10.800 lumens can be achieved. The photosynthetically active radiation between 380 and 780 nm (PAR value), reaches optimal values for healthy plant growth and strong colours.

The daytime onex is also available in a color version with 4.000 to 5.000 Kelvin with a red and blue accentuation, for a natural, soft look. In addition, daytime offers a plant version, with colder light of 6.000 to 7.000 Kelvin for strong contrasts and sharp contours.

By means of the daytime BC16 daytime onex plant can be controlled and dimmed. This makes daytime sequences, sunrises and sunsets and even break times possible.

Roots

Each daytime onex can be adapted to almost any situation by means of the extensive range of accessories available.

A power supply unit is not included in the scope of delivery.

Info flyer onex - - download PDF

Features

Available in 19 standard lengths
Ideal for aquarium lengths between 200.0 and 2000.0 mm
Three different versions available
Waterproof
Integrated inline telescope supports made of solid aluminium
daytime LED-Converter 24V available in desired version
Optional acrylic-adapter set extends flexibility
Acrylic nano adapter set
Accessories for the operation of 2 onex lamps: daytime distributor two-way
The daytime onex wire suspension set enables usage as pendant light
Made in Germany

Technical Data

daytime onex plant - 20
Input	4,8 W
Luminous flux	864 lm
Colour temperatur	4.000 bis 5.000 K

daytime onex plant - 30
Input	7,2 W
Luminous flux	1.296 lm
Colour temperatur	4.000 bis 5.000 K

daytime onex plant - 40
Input	9,6 W
Luminous flux	1.728 lm
Colour temperatur	4.000 bis 5.000 K

daytime onex plant - 50
Input	12,0 W
Luminous flux	2.160 lm
Colour temperatur	4.000 bis 5.000 K

daytime onex plant - 60
Input	16,8 W
Luminous flux	3.024 lm
Colour temperatur	4.000 bis 5.000 K

daytime onex plant - 70
Input	19,2 W
Luminous flux	3.456 lm
Colour temperatur	4.000 bis 5.000 K

daytime onex plant - 80
Input	21,6 W
Luminous flux	3.888 lm
Colour temperatur	4.000 bis 5.000 K

daytime onex plant - 90
Input	26,4 W
Luminous flux	4.752 lm
Colour temperatur	4.000 bis 5.000 K

daytime onex plant - 100
Input	28,8 W
Luminous flux	5.184 lm
Colour temperatur	4.000 bis 5.000 K

daytime onex plant - 110
Input	31,2 W
Luminous flux	5.616 lm
Colour temperatur	4.000 bis 5.000 K

daytime onex plant - 120
Input	36,0 W
Luminous flux	6.480 lm
Colour temperatur	4.000 bis 5.000 K

daytime onex plant - 130
Input	38,4 W
Luminous flux	6.912 lm
Colour temperatur	4.000 bis 5.000 K

daytime onex plant - 140
Input	40,8 W
Luminous flux	7.344 lm
Colour temperatur	4.000 bis 5.000 K

daytime onex plant - 150
Input	45,6 W
Luminous flux	8.208 lm
Colour temperatur	4.000 bis 5.000 K

daytime onex plant - 160
Input	48,0 W
Luminous flux	8.640 lm
Colour temperatur	4.000 bis 5.000 K

daytime onex plant - 170
Input	50,4 W
Luminous flux	9.072 lm
Colour temperatur	4.000 bis 5.000 K

daytime onex plant - 180
Input	55,2 W
Luminous flux	9.936 lm
Colour temperatur	4.000 bis 5.000 K

daytime onex plant - 190
Input	57,6 W
Luminous flux	10.368 lm
Colour temperatur	4.000 bis 5.000 K

daytime onex plant - 200
Input	60,0 W
Luminous flux	10.800 lm
Colour temperatur	4.000 bis 5.000 K

Dimensions

daytime onex plant - 20
Profile length	165 mm
Width	20 mm
Height	11,5 mm
Suitable for aquarium length	200 - 300 mm
Suitable for aquarium volume	15 - 30 l

daytime onex plant - 30
Profile length	240 mm
Width	20 mm
Height	11,5 mm
Suitable for aquarium length	260 - 360 mm
Suitable for aquarium volume	20 - 40 l

daytime onex plant - 40
Profile length	325 mm
Width	20 mm
Height	11,5 mm
Suitable for aquarium length	345 - 445 mm
Suitable for aquarium volume	30 - 50 l

daytime onex plant - 50
Profile length	420 mm
Width	20 mm
Height	11,5 mm
Suitable for aquarium length	440 - 540 mm
Suitable for aquarium volume	40 - 60 l

daytime onex plant - 60
Profile length	540 mm
Width	20 mm
Height	11,5 mm
Suitable for aquarium length	560 - 660 mm
Suitable for aquarium volume	50 - 70 l

daytime onex plant - 70
Profile length	635 mm
Width	20 mm
Height	11,5 mm
Suitable for aquarium length	655 - 755 mm
Suitable for aquarium volume	60 - 80 l

daytime onex plant - 80
Profile length	720 mm
Width	20 mm
Height	11,5 mm
Suitable for aquarium length	740 - 840 mm
Suitable for aquarium volume	70 - 90 l

daytime onex plant - 90
Profile length	840 mm
Width	20 mm
Height	11,5 mm
Suitable for aquarium length	860 - 960 mm
Suitable for aquarium volume	80 - 100 l

daytime onex plant - 100
Profile length	935 mm
Width	20 mm
Height	11,5 mm
Suitable for aquarium length	950 - 1.055 mm
Suitable for aquarium volume	90 - 110 l

daytime onex plant - 110
Profile length	1.020 mm
Width	20 mm
Height	11,5 mm
Suitable for aquarium length	1.040 - 1.140 mm
Suitable for aquarium volume	100 - 130 l

daytime onex plant - 120
Profile length	1.140 mm
Width	20 mm
Height	11,5 mm
Suitable for aquarium length	1.160 - 1.260 mm
Suitable for aquarium volume	110 - 140 l

daytime onex plant - 130
Profile length	1.235 mm
Width	20 mm
Height	11,5 mm
Suitable for aquarium length	1.250 - 1.355 mm
Suitable for aquarium volume	120 - 150 l

daytime onex plant - 140
Profile length	1.320 mm
Width	20 mm
Height	11,5 mm
Suitable for aquarium length	1.340 - 1.440 mm
Suitable for aquarium volume	130 - 150 l

daytime onex plant - 150
Profile length	1.400 mm
Width	20 mm
Height	11,5 mm
Suitable for aquarium length	1.460 - 1.560 mm
Suitable for aquarium volume	140 - 160 l

daytime onex plant - 160
Profile length	1.535 mm
Width	20 mm
Height	11,5 mm
Suitable for aquarium length	1.555 - 1.655 mm
Suitable for aquarium volume	150 - 170 l

daytime onex plant - 170
Profile length	1.620 mm
Width	20 mm
Height	11,5 mm
Suitable for aquarium length	1.640 - 1.740 mm
Suitable for aquarium volume	160 - 180 l

daytime onex plant - 180
Profile length	1.740 mm
Width	20 mm
Height	11,5 mm
Suitable for aquarium length	1.760 - 1.860 mm
Suitable for aquarium volume	170 - 190 l

daytime onex plant - 190
Profile length	1.835 mm
Width	20 mm
Height	11,5 mm
Suitable for aquarium length	1.860 - 1.960 mm
Suitable for aquarium volume	180 - 210 l

daytime onex plant - 200
Profile length	1.920 mm
Width	20 mm
Height	11,5 mm
Suitable for aquarium length	1.940 - 2.040 mm
Suitable for aquarium volume	190 - 210 l

daytime

Daytime LED aquarium lighting - made in Germany - is one of the most efficient LED lighting manufacturers in the aquarium industry. The illumination systems daytime matrix, daytime onex, daytime pendix and daytime eco offer most flexible and individual solutions for brilliant aquarium illumination. The daytime lights are equipped with leading quality LEDs from SSC (SEOUL SEMI CONDUCTERS) with an efficiency of up to 230 lumens per watt and an outstanding colour rendering index (CRI) of up to 90. All daytime luminaries are water- and dust resistant with IP 67, DIN EN 60529 certificate. The lifespan lies at around 60.000 hours. All daytime lights are anodized and resistant against seawater with DIN81249-1 certificate. For the aquarium, aquascape or aquatic plant aquarium, the perfect solution to realise biotope-compatible and natural lighting with LEDs.

Manufacturer Information

Manufacturer
Name	Tropical Heimtierbedarf Deutschland GmbH
Street	Bühlfelderweg 12
City	94239 Ruhmannsfelden
State	Bayern
Country	Deutschland
E-Mail	info@daytime.de
Website	www.daytime.de
