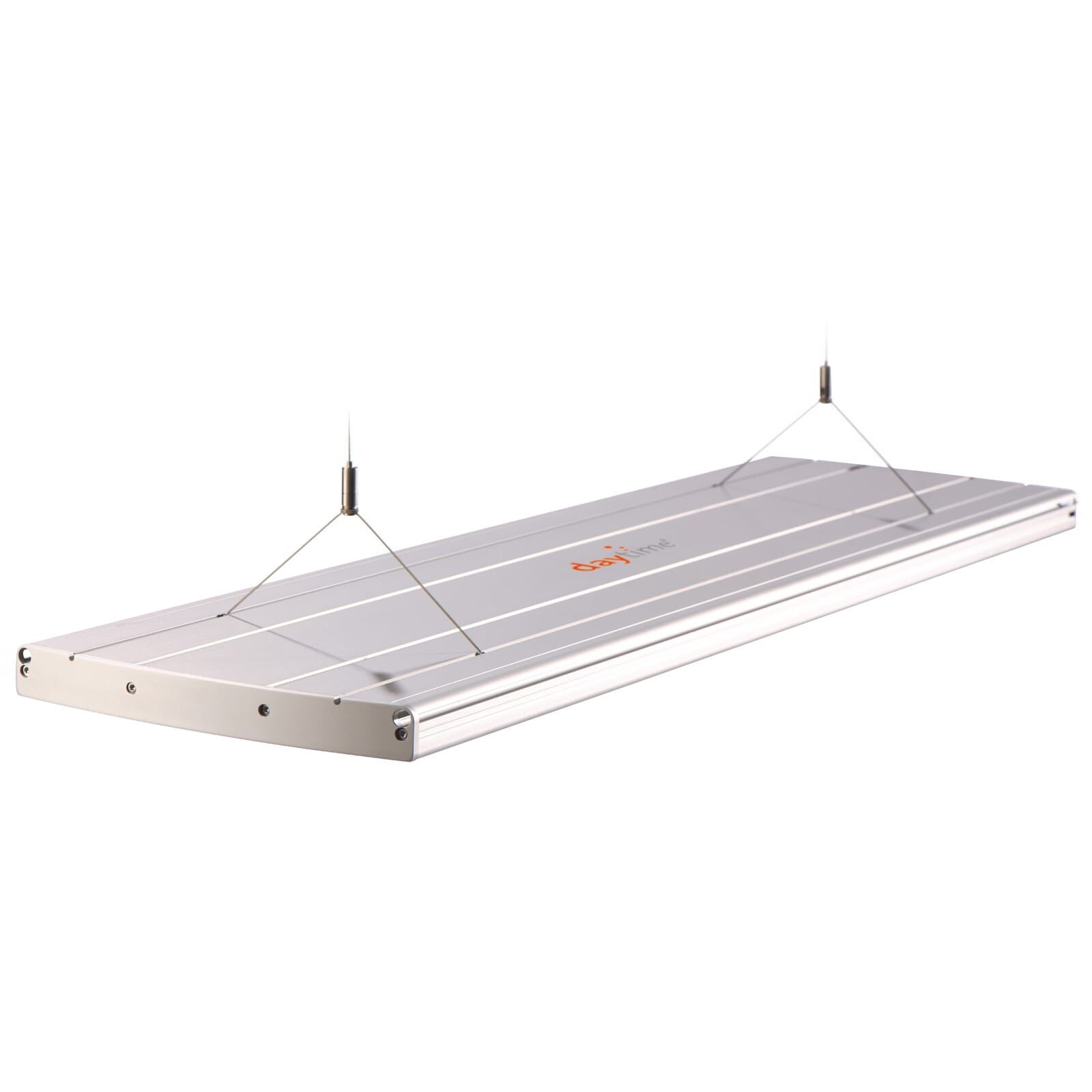

daytime pendix

(0 ratings)

Based on the tried-and-tested matrix technology
Ultra flat design
Three rails for more modules, more power!
Available in silver
LED modules and power units have to be bought separately!

In stock

Free shipping on orders over € 60,- within Germany Change region

1-3 business days - order within the next hour and we’ll deliver tomorrow at the earliest

I want to order to

confirm

Optional mounting

daytime pendix support legs adapter set

Set for mounting as surface-mounted light made of aluminium

€

44.

daytime pendix wire suspension set

Suspension system for the daytime pendix made of fine stainless steel wire

€

74.

daytime pendix Wall Mounting Set 400

Set of 2 wall brackets with an LED mounting distance wall 10 - 29,5 cm

€

149.-

daytime pendix Wall Mounting Set 500

Set of 2 wall brackets with an LED mounting distance wall 10 - 34,5 cm

€

155.-

daytime pendix Wall Mounting Set 600

Set of 2 wall brackets with an LED mounting distance wall 10 - 39,5 cm

€

159.-

daytime pendix Longitudinal Connector Set

For connecting individual pendix lamp systems

€

68.

Optional controller

daytime BC16

For easy control of the LED
With simulation of sunrise and sunset, night light and optional pause function

€

119.-

daytime Smart Control SC20

Individual LED control via W-Lan

€

289.-

Please choose a variation

Item question

We’re here for you!

Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.

Thank you for your question!

Thank you, we’ll get in touch!

Close window

You already sent us a question.

Please wait a few minutes

Description

The modular and energy - efficient pendix LED aquarium lighting from daytime is very appealing over any aquarium tank. Based on their well-known and established modular system, the pendix differs from the popular and proven daytime matrix mainly by a flat panel design, virtually floating above the tank. In contrast to the module supports of the matrix series, the pendix support system is significantly wider and thus enables a more generous module configuration and therefore more light output above the aquarium. The pendix carrier system contains three module rails which can be equipped with the well-known high-power LEDs of the matrix series.

Thanks to adapter sets, the light can also be used as a surface-mounted light or for fixed wall mounting.

By means of the daytime BC16 daytime pendix can be controlled and dimmed. This makes daytime sequences, sunrises and sunsets and even break times possible.

All important information compactly summarized: Daytime - Info Flyer (German only).

daytime - pendix lights in larger sizes are available individually on request. For an offer, please send us an email to yoohoo@aquasabi.com

If there are any questions about the configuration, we will be happy to help via mail. We will be happy to advise or put together a completely customised daytime LED lighting system.

Info flyer pendix - - download PDF

Features

LED-modules sold seperately
Installation of the modules can be done by the user almost effortlessly
Proven, free positionable, modular design of individual LED elements
Available from us up to a length of 200cm
Fanless passive cooling and 20% increased heat dissipation through lateral guide surfaces
All-aluminium components, anodised and seawater-resistant according to DIN81249-1
With integrated grooves for cable suspensions and screw channels for wall mounting
Easy to clean, removable splash guards included
Market leader technology (SEOUL SEMICONDUCTOR)
Splendid colour rendering up to CRI 90
120° emission angle
SEOUL SEMICONDUCTOR SMD-LED 5630 up to 230 Lumen/Watt
Dust- and water-proof (IP67)

Application

profile	maximum number of modules
pendix 40.0	9 modules
pendix 50.0	12 modules
pendix 60.0	15 modules
pendix 70.0	18 modules
pendix 80.0	24 modules
pendix 90.0	24 modules
pendix 100.0	24 modules
pendix 110.0	24 modules
pendix 120.0	24 modules
pendix 130.0	24 modules
pendix 140.0	24 modules
pendix 150.0	24 modules
pendix 160.0	24 modules
pendix 170.0	24 modules
pendix 180.0	24 modules
pendix 190.0	24 modules
pendix 200.0	24 modules

Dimensions

daytime pendix 40.0
Profile length	400 mm
Width	219 mm
Height	25 mm
Suitable for aquarium length	550 - 650 mm
Suitable for aquarium volume	bis 550 l

daytime pendix 50.0
Profile length	500 mm
Width	219 mm
Height	25 mm
Suitable for aquarium length	650 - 750 mm
Suitable for aquarium volume	bis 860 l

daytime pendix 60.0
Profile length	600 mm
Width	219 mm
Height	25 mm
Suitable for aquarium length	750 - 850 mm
Suitable for aquarium volume	bis 1.050 l

daytime pendix 70.0
Profile length	700 mm
Width	219 mm
Height	25 mm
Suitable for aquarium length	850 - 950 mm
Suitable for aquarium volume	bis 1.250 l

daytime pendix 80.0
Profile length	800 mm
Width	219 mm
Height	25 mm
Suitable for aquarium length	950 - 1.050 mm
Suitable for aquarium volume	bis 1.700 l

daytime pendix 90.0
Profile length	900 mm
Width	219 mm
Height	25 mm
Suitable for aquarium length	1.100 - 1.150 mm
Suitable for aquarium volume	bis 1.700 l

daytime pendix 100.0
Profile length	1.000 mm
Width	219 mm
Height	25 mm
Suitable for aquarium length	1.150 - 1250 mm
Suitable for aquarium volume	bis 1.700 l

daytime pendix 110.0
Profile length	1.100 mm
Width	219 mm
Height	25 mm
Suitable for aquarium length	1.250 - 1350 mm
Suitable for aquarium volume	bis 1.700 l

daytime daytime pendix 120.0
Profile length	1.200 mm
Width	219 mm
Height	25 mm
Suitable for aquarium length	1350 - 1.450 mm
Suitable for aquarium volume	bis 1.700 l

daytime pendix 130.0
Profile length	1.300 mm
Width	219 mm
Height	25 mm
Suitable for aquarium length	1.450 - 1.550 mm
Suitable for aquarium volume	bis 1.700 l

daytime pendix 140.0
Profile length	1.400 mm
Width	219 mm
Height	25 mm
Suitable for aquarium length	1.550 - 1.650 mm
Suitable for aquarium volume	bis 1.700 l

daytime pendix 150.0
Profile length	1.500 mm
Width	219 mm
Height	25 mm
Suitable for aquarium length	1.650 - 1.750 mm
Suitable for aquarium volume	bis 1.700 l

daytime pendix 160.0
Profile length	1.600 mm
Width	219 mm
Height	25 mm
Suitable for aquarium length	1.750 - 1.850 mm
Suitable for aquarium volume	bis 1.700 l

daytime pendix 170.0
Profile length	1.700 mm
Width	219 mm
Height	25 mm
Suitable for aquarium length	1.850 - 1.950 mm
Suitable for aquarium volume	bis 1.700 l

daytime pendix 180.0
Profile length	1.800 mm
Width	219 mm
Height	25 mm
Suitable for aquarium length	1.950 - 2.050 mm
Suitable for aquarium volume	bis 1.700 l

daytime pendix 190.0
Profile length	1.900 mm
Width	219 mm
Height	25 mm
Suitable for aquarium length	2.050 - 2.150 mm
Suitable for aquarium volume	1.700 l

daytime pendix 200.0
Profile length	2.000 mm
Width	219 mm
Height	25 mm
Suitable for aquarium length	2.150 - 2.250 mm
Suitable for aquarium volume	1.700 l

Adapters, for example for suspending one or even more LED profiles, are also available.

daytime

Daytime LED aquarium lighting - made in Germany - is one of the most efficient LED lighting manufacturers in the aquarium industry. The illumination systems daytime matrix, daytime onex, daytime pendix and daytime eco offer most flexible and individual solutions for brilliant aquarium illumination. The daytime lights are equipped with leading quality LEDs from SSC (SEOUL SEMI CONDUCTERS) with an efficiency of up to 230 lumens per watt and an outstanding colour rendering index (CRI) of up to 90. All daytime luminaries are water- and dust resistant with IP 67, DIN EN 60529 certificate. The lifespan lies at around 60.000 hours. All daytime lights are anodized and resistant against seawater with DIN81249-1 certificate. For the aquarium, aquascape or aquatic plant aquarium, the perfect solution to realise biotope-compatible and natural lighting with LEDs.
